Microscope X/Y Slider

MechanicalMotion controlPCB

A sliding stand for a digital microscope: an X/Y table under the workbench with linear rails and cable chains, so the microscope glides into place with a push.

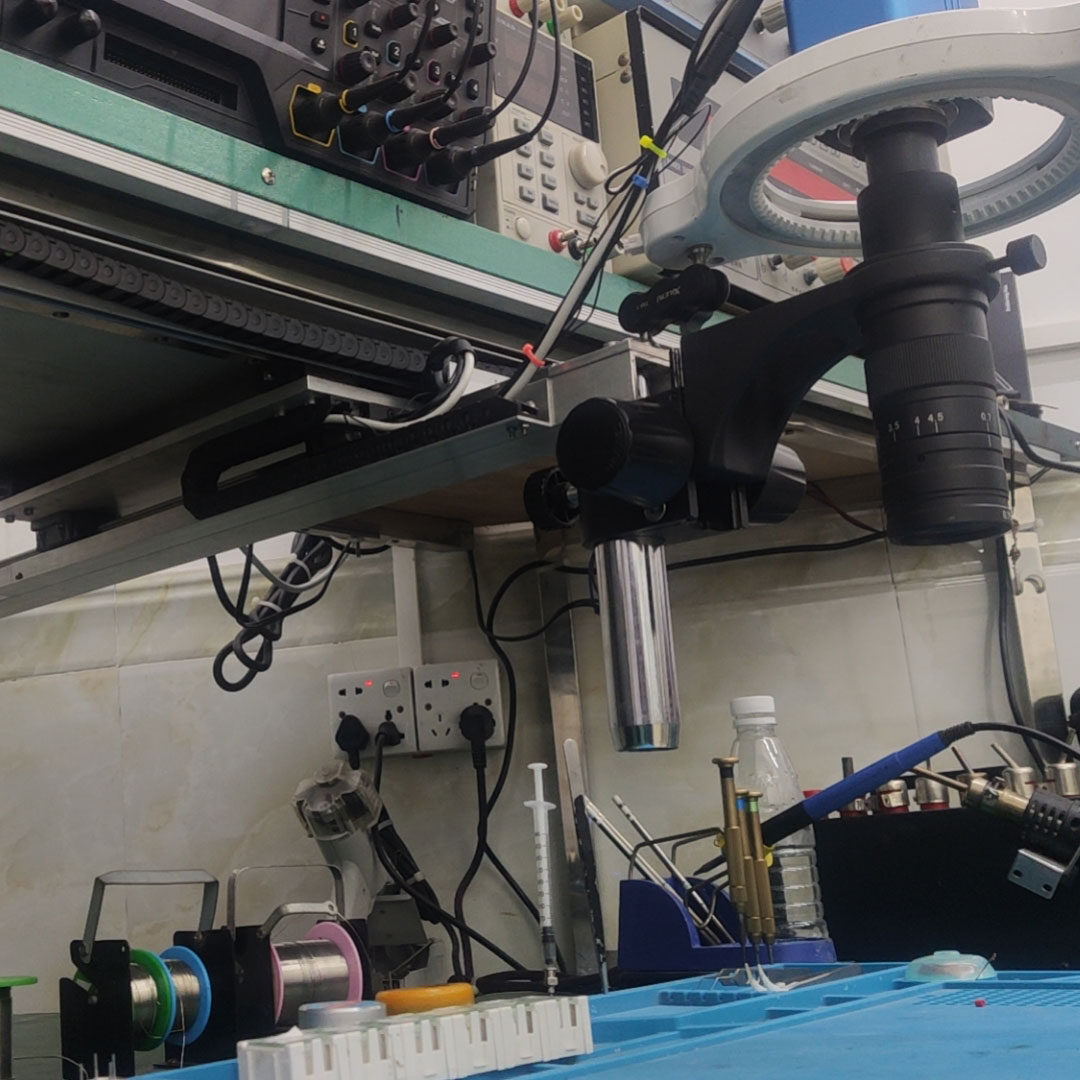

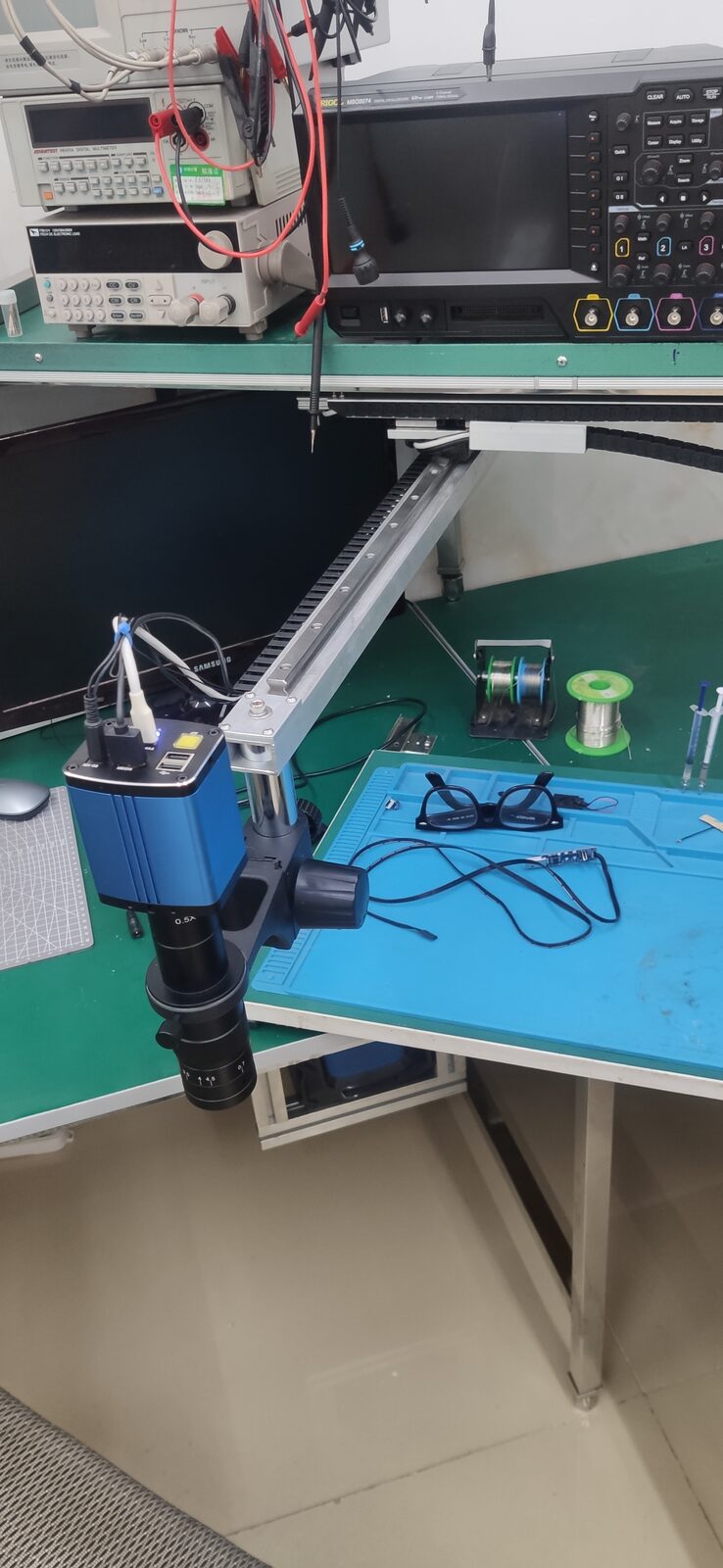

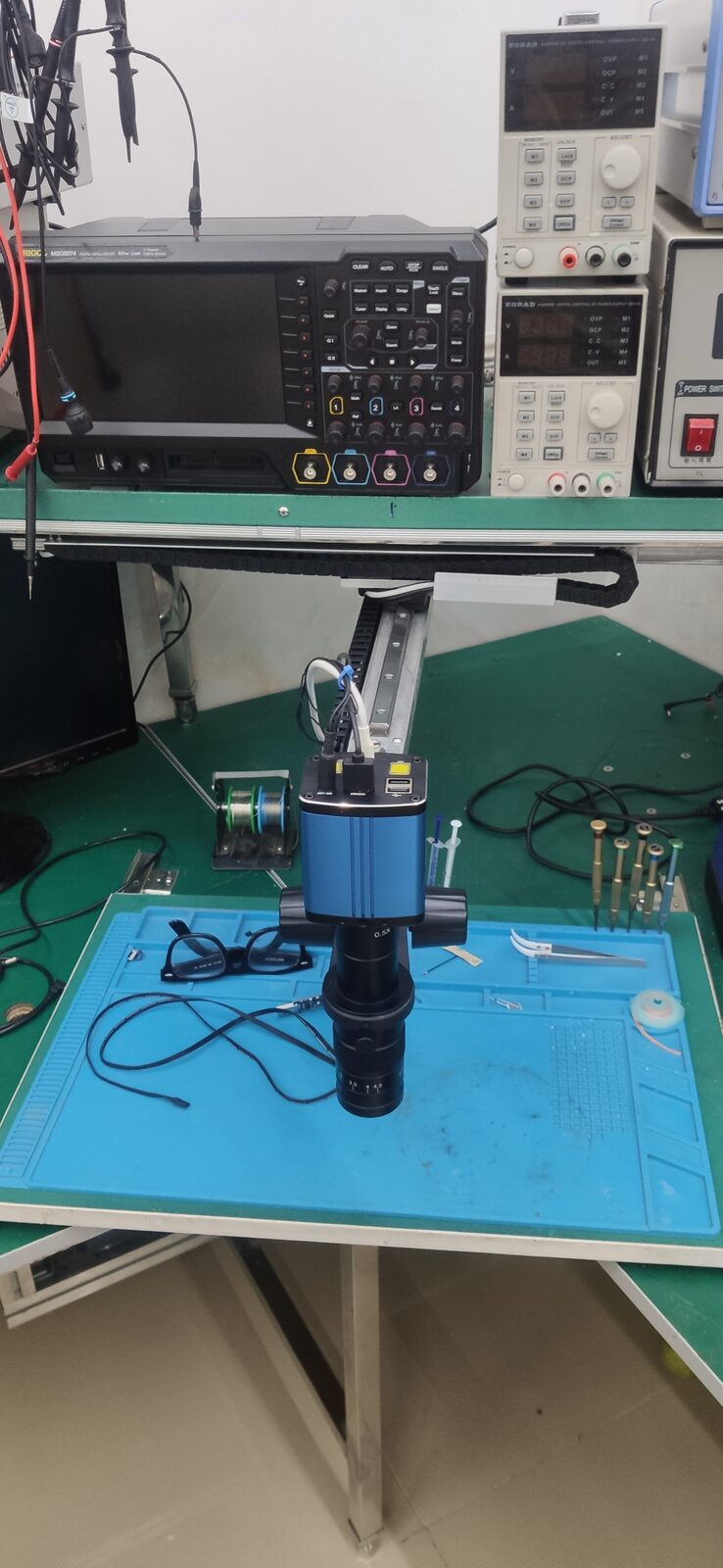

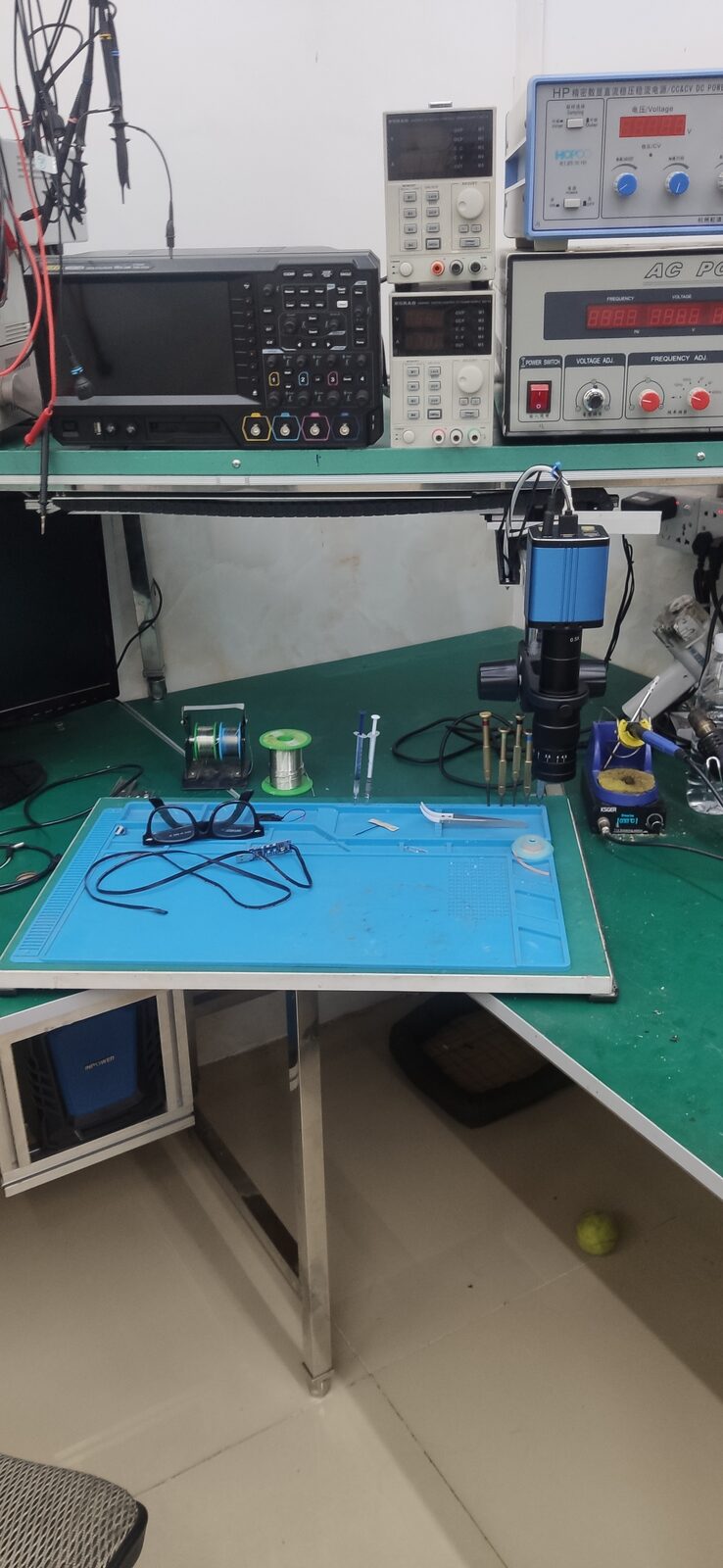

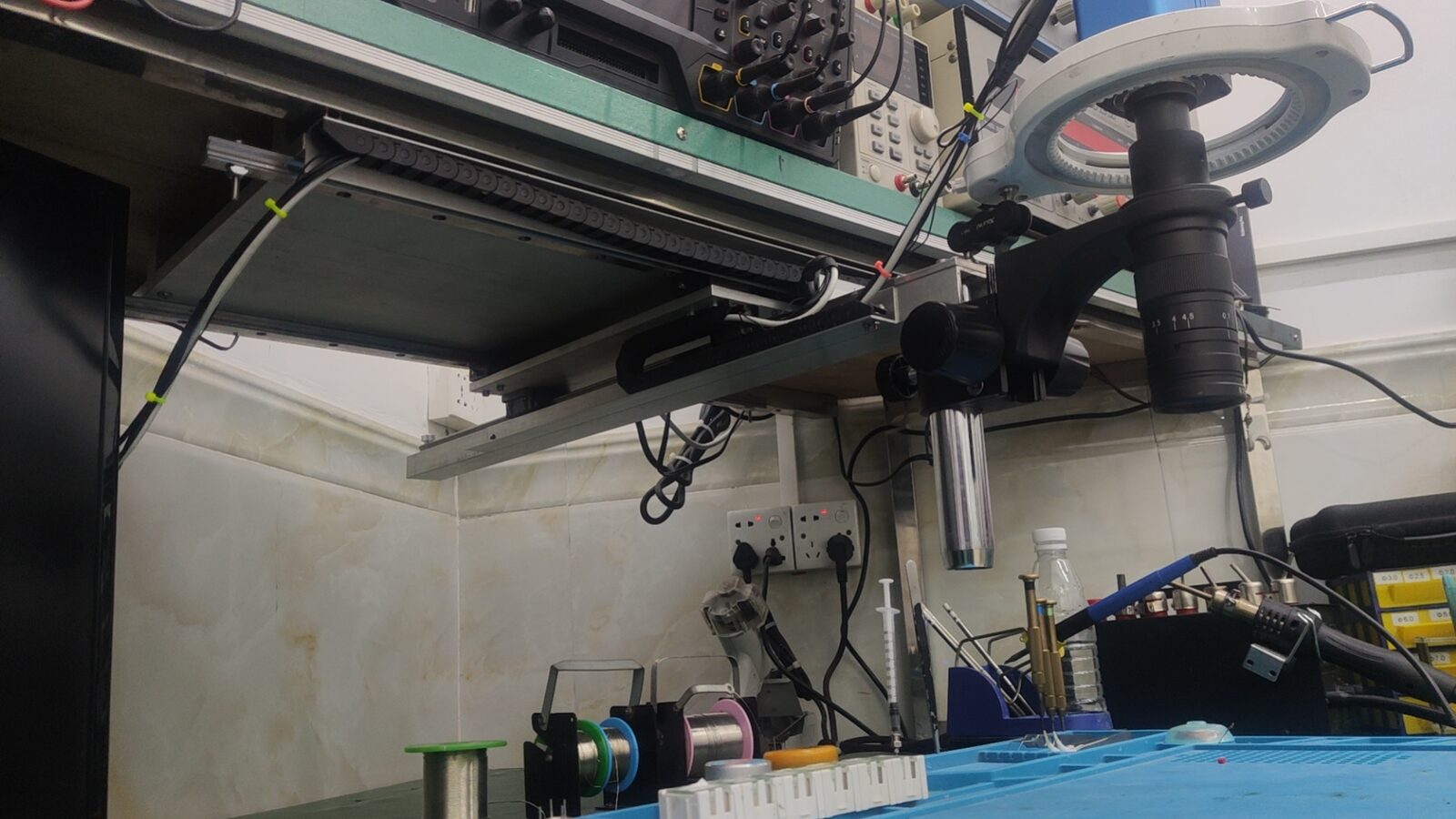

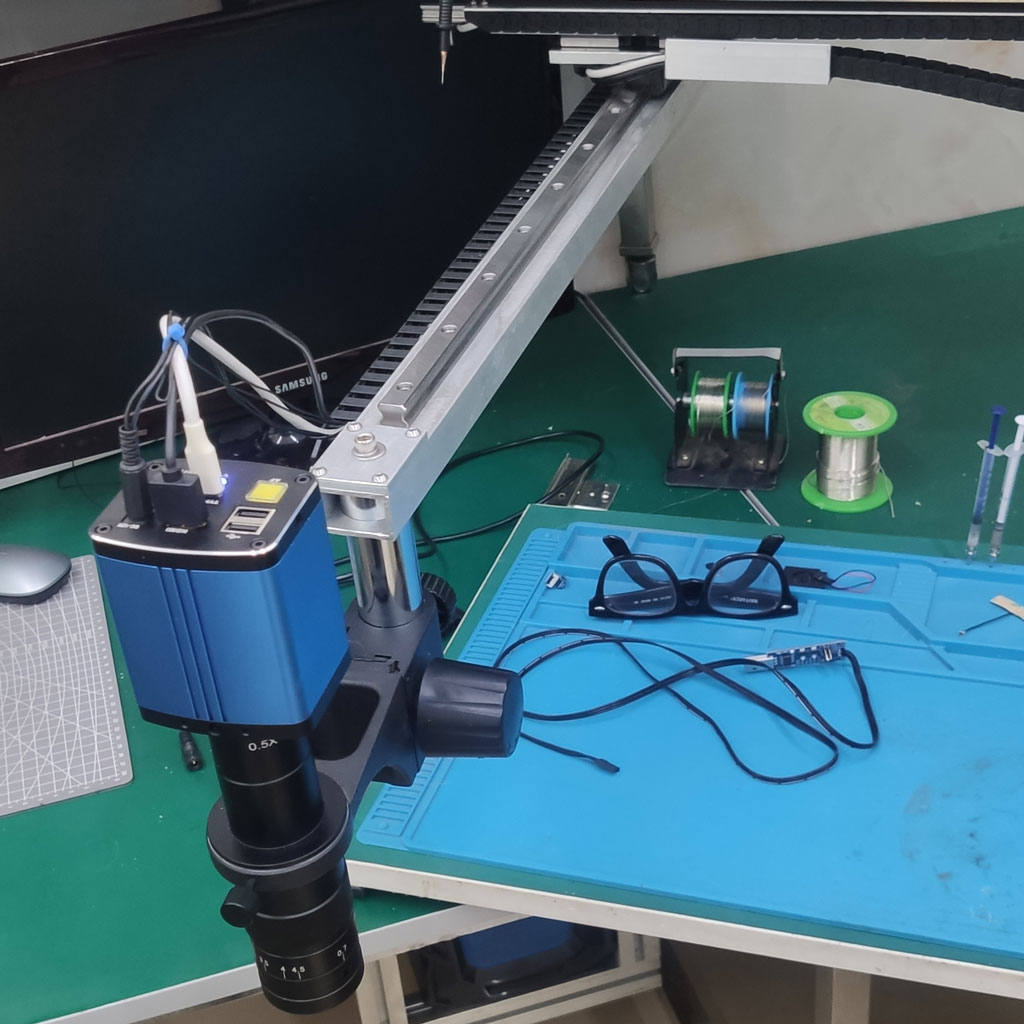

Workbench with a digital microscope on a sliding arm mounted under the shelf above a blue work mat, with test instruments stacked beside it.Close view of the blue digital microscope hanging over the blue work mat, with a rail arm above it.Microscope extended on a pale metal slide rail over the work mat, seen beside an oscilloscope and bench power supplies.Low-angle view of a ring-lit microscope head on a rail mounted under the bench shelf, with cables and solder spools below.Wide view from the bench level of the microscope with its ring light on the sliding rail, above spools of solder and a blue mat.Close view of a blue digital microscope camera hanging from a white sliding rail arm over a blue work mat with glasses, tweezers and cables.

Sliding Microscope Stand: Enhancing Precision in Electronics Work

Adapting to Technological Trends:

As electronic components become increasingly miniaturized, the need for efficient, precise examination tools has grown. At Lavigne Labs, we responded to this challenge by developing the Sliding Microscope Stand, a solution designed to facilitate detailed electronic work.

Innovative Design and Functionality:

  • Problem Identification: Traditional microscope stands often prove cumbersome, especially when dealing with delicate or large electronic samples.

  • Custom Solution: We mounted an X/Y table beneath the workbench, integrated cable management, and attached our digital microscope, creating an easily adjustable platform.

Construction and Usability:

  • Durable Base: The stand features a sturdy aluminum plate as its base, ensuring stability and durability.

  • Linear Rail Mechanism: A set of linear rails, along with cable chains for wire management, allows for smooth, effortless movement of the microscope.

Impact on Daily Operations:

This Sliding Microscope Stand has revolutionized our daily electronics work. With a simple push, the microscope glides to the desired location, significantly reducing frustration and improving efficiency in detailed tasks.

Representation of Lavigne Labs' Expertise:

While initially an in-house tool, this functional prototype exemplifies what Lavigne Labs stands for: creating high-quality, practical solutions tailored to specific needs. The Sliding Microscope Stand not only serves as a potential niche product but also demonstrates our capability to source local components and construct durable, functional tools that align precisely with user requirements.
