Articulated Camera Arm

MechanicalProduct design

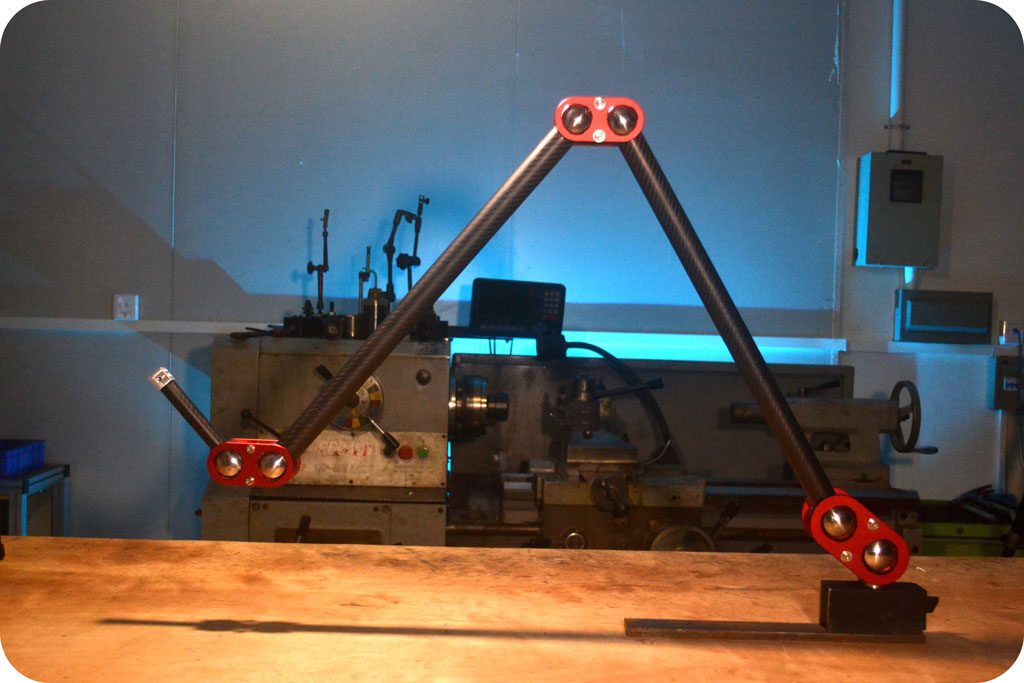

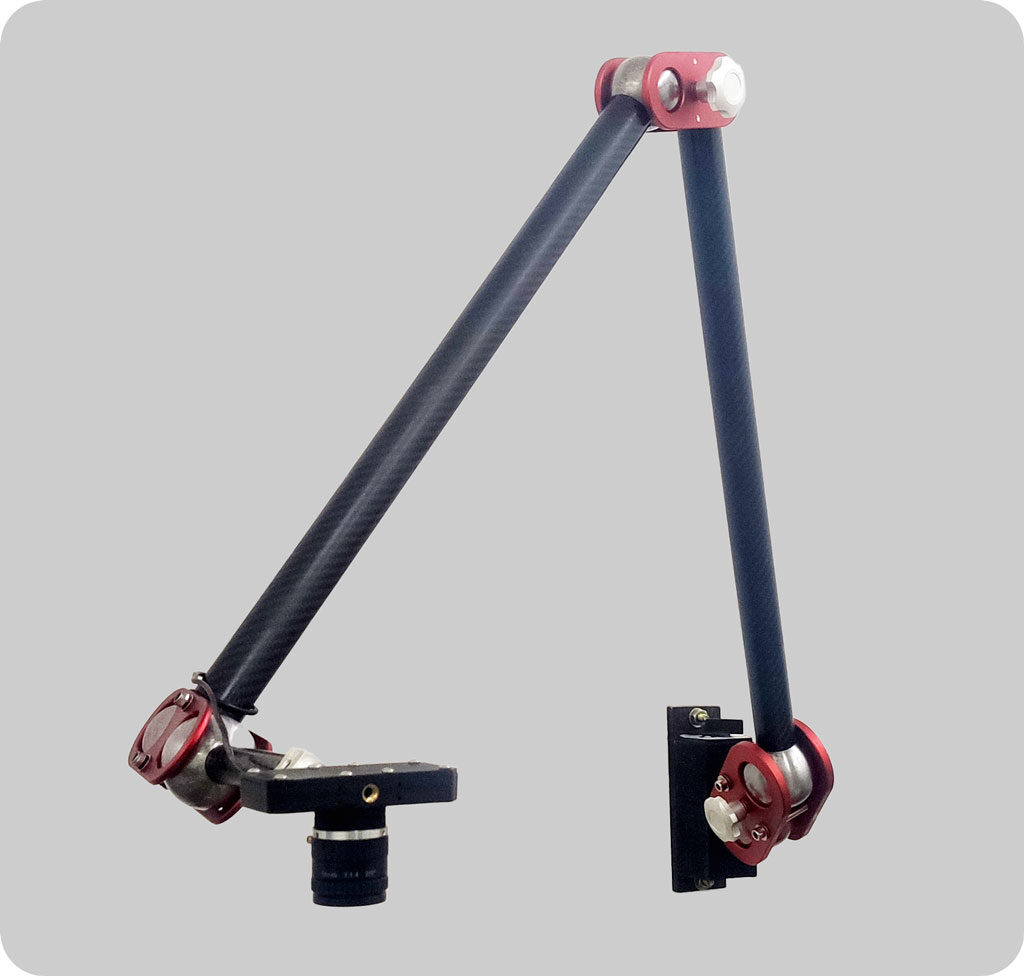

An articulated camera arm of carbon fiber tubes, polished steel spheres and red aluminum pressure plates, inspired by Robin Renzetti's design.

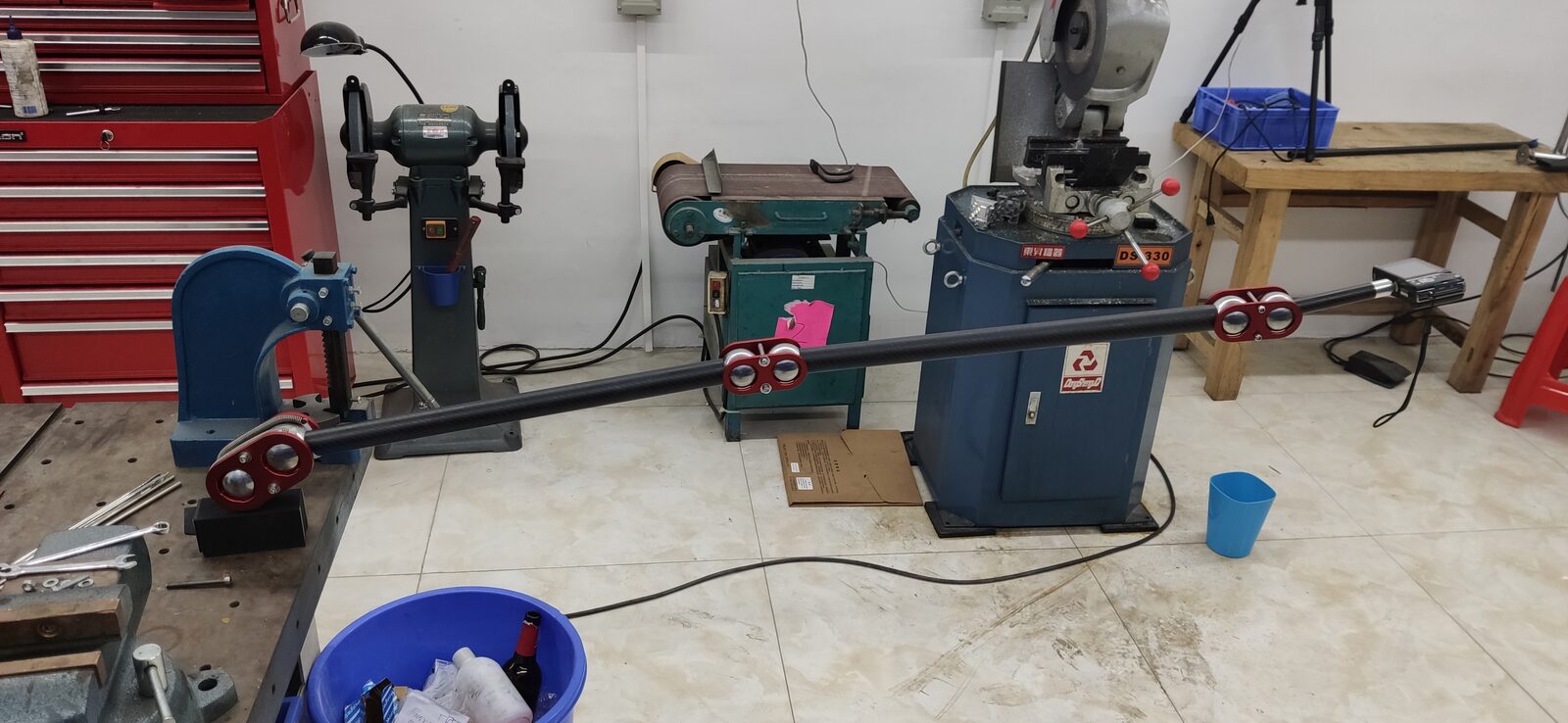

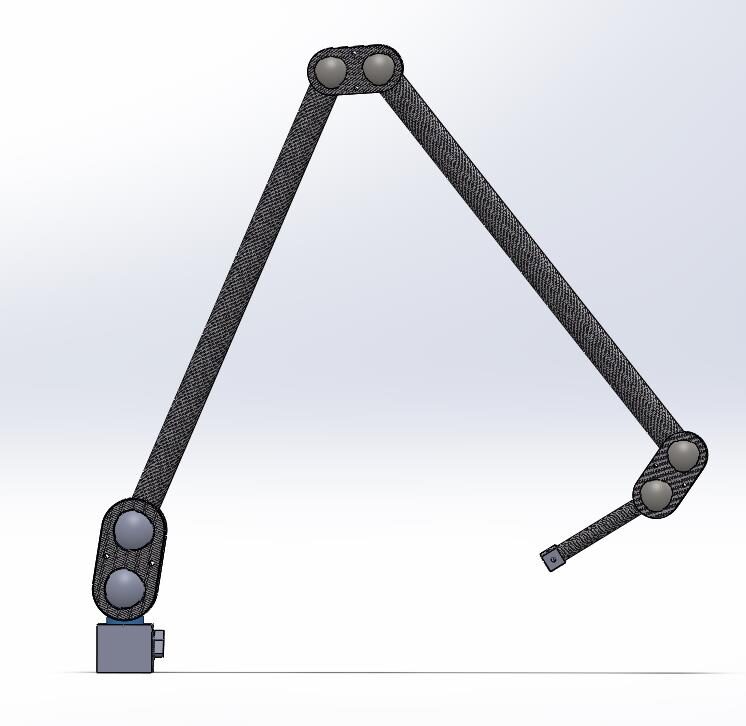

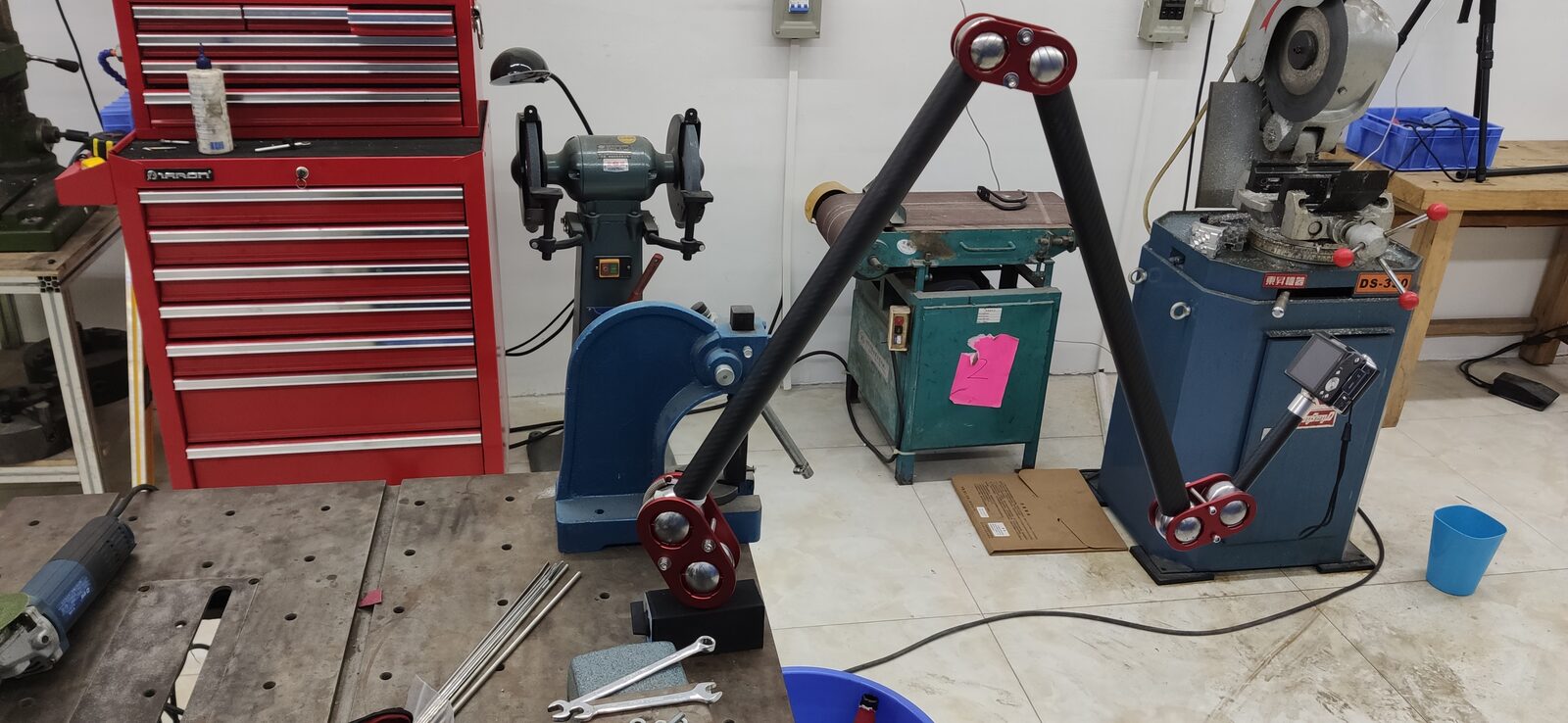

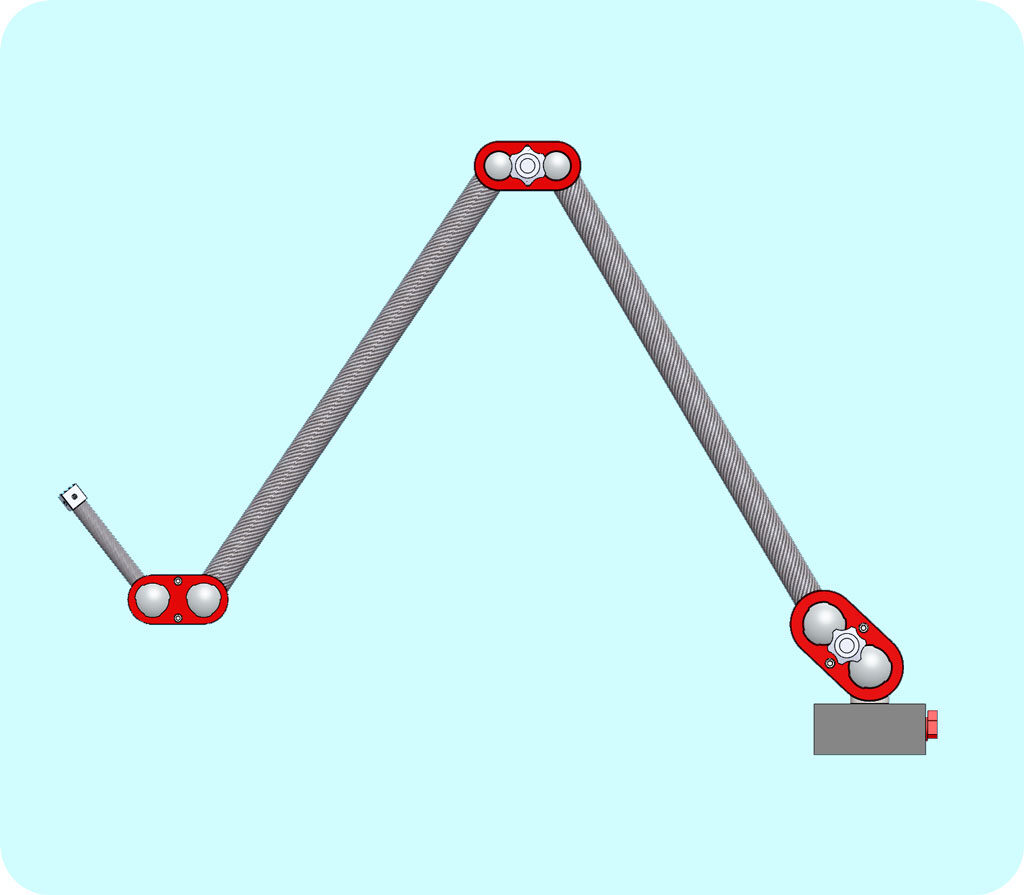

Two-link arm with red joints and black tubes standing on a workbench in front of a lathe, lit with a blue background glow.Product shot of a black two-link arm with red joints, a camera lens on a clamp at one end and a bracket at the other, on a grey background.Long arm with red joints reaching across a workshop floor with a red tool chest, grinder and machine tools behind it.A second view of the long arm with red joints stretched across the workshop, with a blue bucket and machine tools nearby.Rendered CAD view of a black two-link arm folded in an inverted V, with a small gray base block at the lower left.Rendered CAD view of a grey two-link arm with red joints on a pale cyan background, with a gray base block at the lower right.

Articulated Camera Arm: A Blend of Functionality and Aesthetics

Origin of the Idea:

The journey of the Articulated Camera Arm at Lavigne Labs began when we identified a need that couldn't be met with existing products. Inspired by Robin Renzetti's design, we embarked on creating a unique, highly functional camera arm using a combination of modern materials and skilled craftsmanship.

Design and Material Selection:

  • Innovative Construction: The camera arm features carbon fiber tubes with steel spheres at the ends, connected by friction plates, allowing for a wide range of motion.

  • Material Harmony: The use of carbon fiber, polished steel spheres, and red aluminum pressure plates creates not only a functional tool but also a visually striking piece.

Challenges and Solutions:

  • Engineering Precision: Achieving perfect roundness of the spheres was crucial and challenging, involving the intricate process of lapping – a skill that was mastered during the project.

  • Detailed Fabrication: Every component was meticulously modeled in 3D, sourced, and assembled to construct this elegant camera arm.

Project Classification:

While the Articulated Camera Arm serves as a fully functional prototype, its complex manufacturing process positions it as more suited for bespoke creation rather than mass production. It exemplifies a production prototype, combining utility with an aesthetically pleasing design.

Reflection on Design Philosophy:

This project reinforces Lavigne Labs' belief that objects should not only be functional but also evoke an emotional connection. The Articulated Camera Arm nears design perfection by marrying practicality with beauty. For those interested, the construction journey of this camera arm is available to view on Brian's personal YouTube channel.
